DVT Series

Vertical Sump Pump – ANSI B73.1 (VS4)

DVT Series - Vertical Sump Pump (VS4)

DVT Features

  • Designed for the process industry (ANSI B73.1M)
  • Max. Capacity: 4,840gpm (1,100 m³/h) @ 1750rpm
  • Max. Head: 760ft (230m) @ 3500rpm
  • Max. Pressure:  230psi (16kg/cm³)
  • Max. Power:  350HP (260kW)
  • Temperature to 350°F (180°C) with high temperature application option
  • Fully open impeller investment casting
  • Material: DCI, WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, and TI
  • Excellent interchangeability
  • ISO 9001 certified by LRQA in 1998

DVT Applications



Drainage Chemical Processing

Slops

Industrial Process Industrial Sump Wastes Tank Unloading
Non-Corrosive Liquids Petrochemical Processing Corrosive Liquids

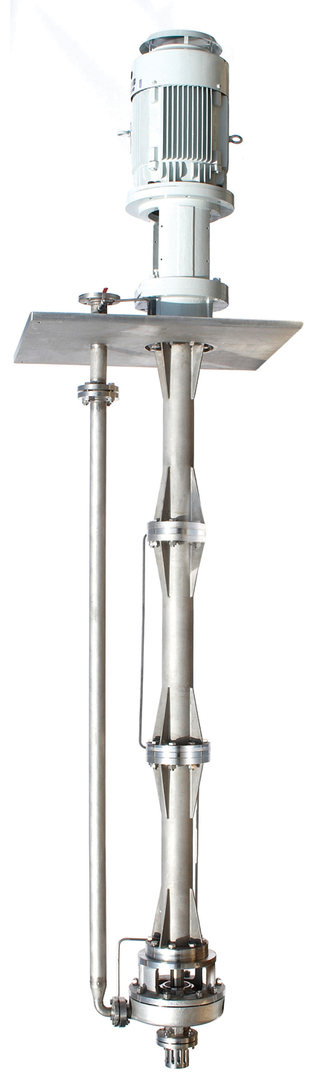

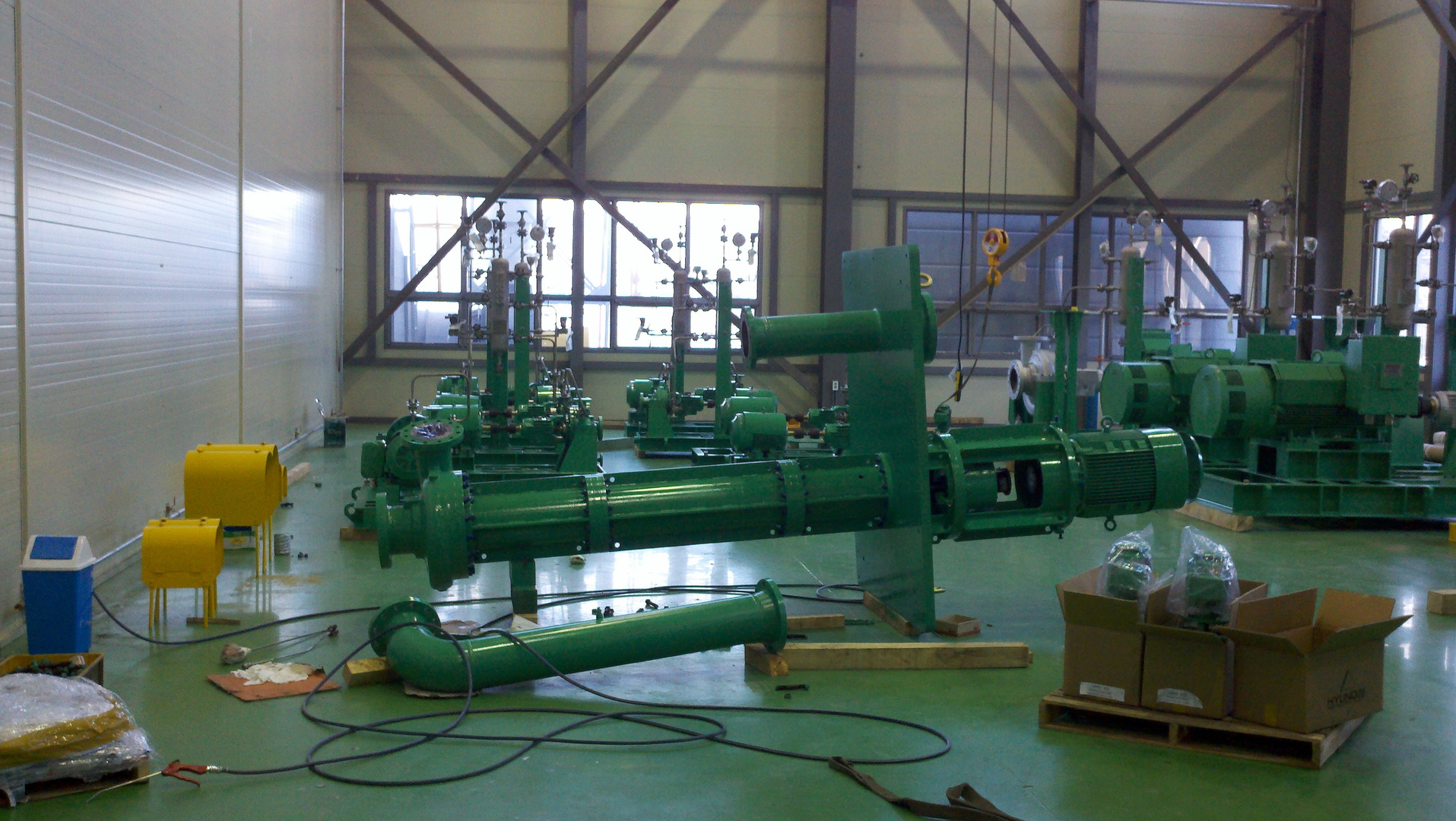

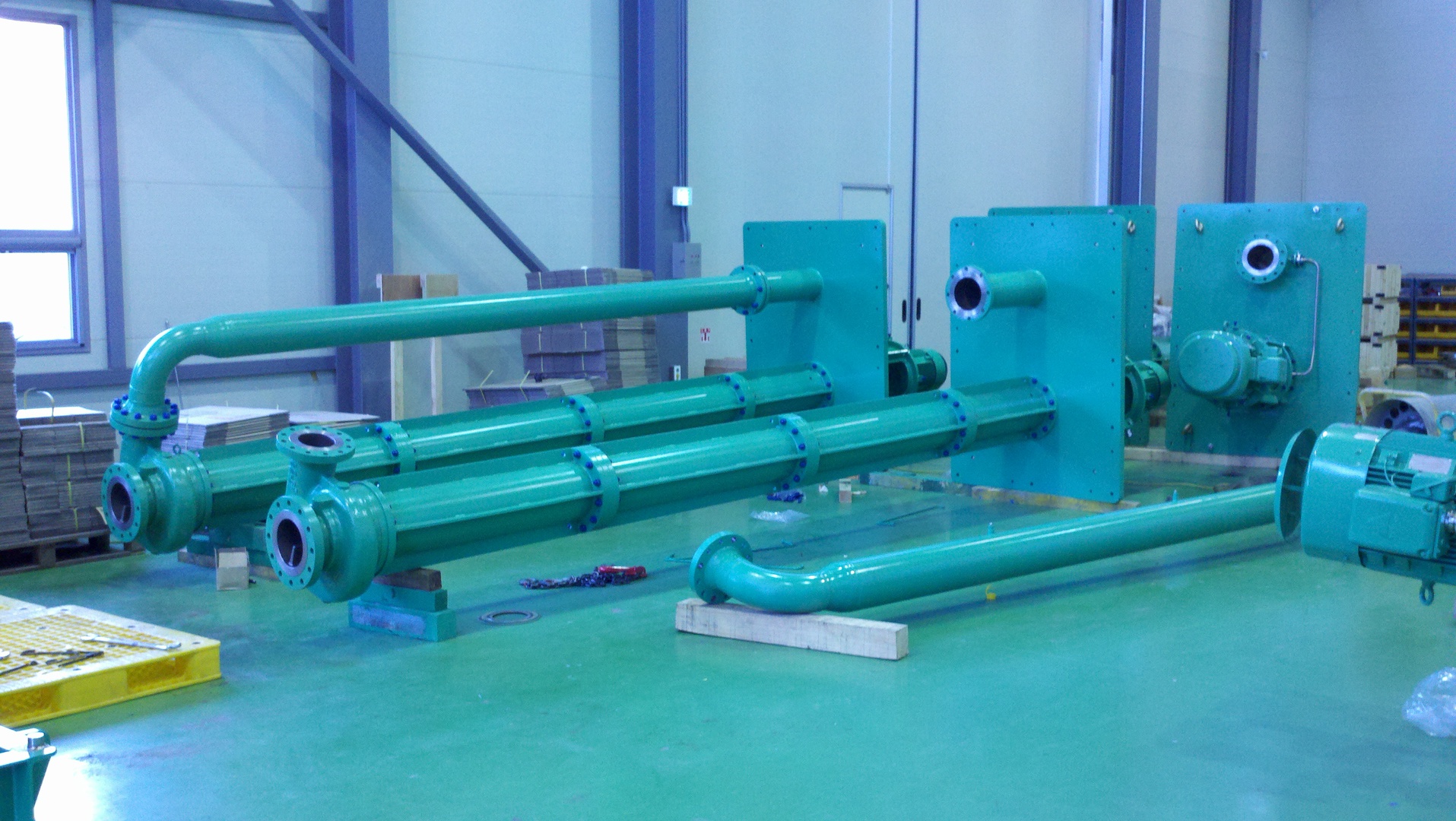

DVT Images

If you are not able to find the information you are looking for, please contact us and we will be more than happy to help you with your search.

New Line Card

View, print or download our full-line product overview.

TRUFLO® Product Line Card TRUFLO® Product Overview

New Low/High Flow Sizes Available

We now have low flow and high flow sizes available for DAP and MAP Series.  They are available for selection on our Pump-Flo Storefront.

Resource Center

Find product literature, manuals, drawings,  curves and more in our Resource Center.
