Non-Metallic Magnetic Drive ANSI Pumps

TNP Series

Non-Metallic Magnetic Drive Pump – ANSI B73.3 (OH1)

Seal-less Design: Magnetically driven seal-less pump with a combination of materials that allow for the mechanical strength of metal and the corrosion resistance of a non-metallic lining.

Non-Metallic: Ductile iron casing lined with a fluoropolymer. Our non-metallic rear containment shell eliminates unwanted "eddy currents" associated with metal designs.

No Alignment or Coupling Required: Our close coupled pump configurations require no alignment as the outer drive magnet connects directly to the motor's drive shaft - thus eliminating the need for a coupling.

TNP Series - Non-Metallic Magnetic Drive (OH1)

TNP Features:

Max. Flow: 930gpm (210m³/h)
Max. Head: 390ft (120m)
Max. Temperature: 240°F (120°C)
Max. Pressure: 230psi (16kg/cm³)
Max. Power: 150HP (110kW)

TNP Applications

Acetic Acid	Nitric & Sulfuric Acid	Ammonia & Bleach
Caustic Soda	Hydrochloric & Phosphoric Acid	Sodium Hypochlorite

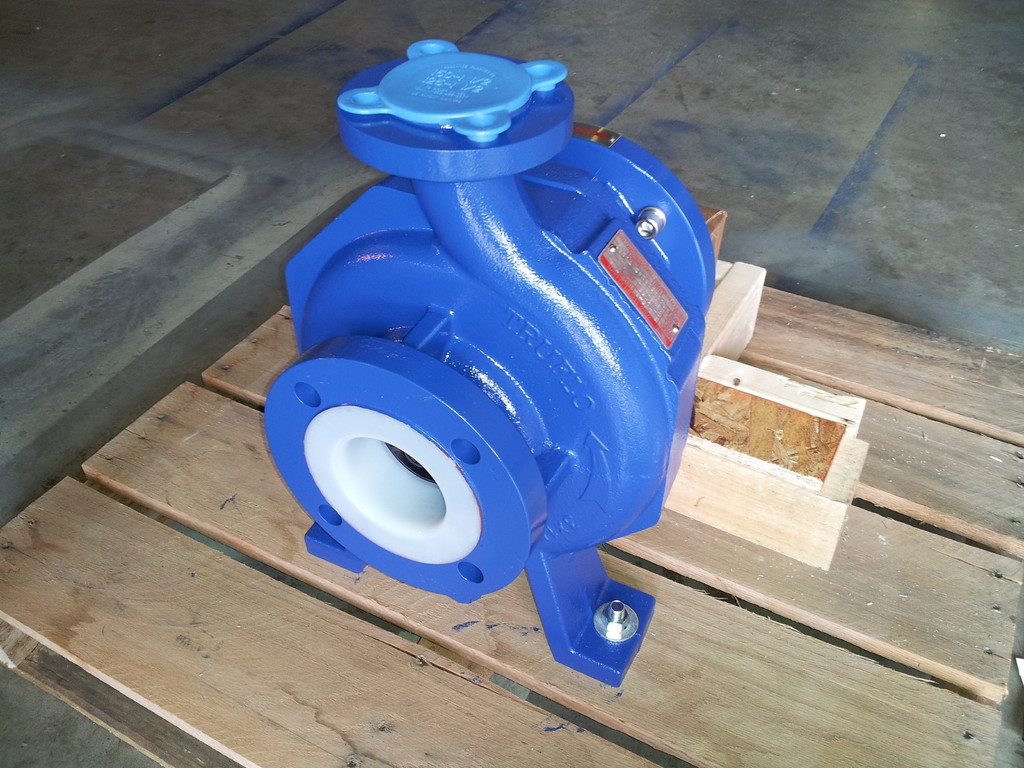

TNP Images

TNP Brochure

Click here to access our Resource Center to view, print or download our product catalog, pump brochures, IOM manuals, performance curves, drawings and more.

TNP Dimensional Drawings & Performance Curves

Pump Sizes	50Hz		60Hz
TNPs 1.5"x1"-5"	1450rpm	2900rpm	1750rpm	3500rpm
TNPs 2"x1.5"-6"	1450rpm	2900rpm	1750rpm	3500rpm
TNPm 1.5"x1"-6"	1450rpm	2900rpm	1750rpm	3500rpm
TNPm 3"x2"-6"	1450rpm	2900rpm	1750rpm	3500rpm
TNPm 4"x3"-6"	1450rpm	2900rpm	1750rpm	3500rpm
TNPm 1.5"x1"-8"	1450rpm	2900rpm	1750rpm	3500rpm
TNPm 3"x1.5"-8"	1450rpm	2900rpm	1750rpm	3500rpm
